Product Overview

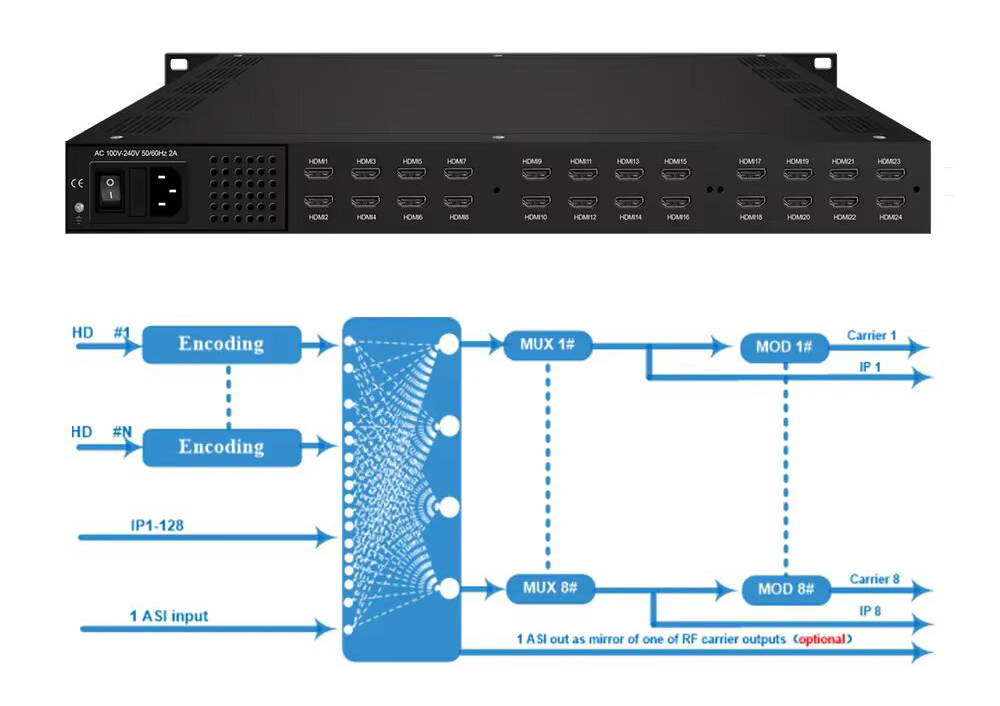

NDS3536S-V2 is a professional high integration device which includes encoding (and de-modulation), multiplexing, and modulation functions,and satellite gateway,and iptv live streaming,and transform protocol in one case. It supports 8/16/24 HDMI (or HDMI plus DVB-S2/S2X tuner) inputs, 1 ASI input, 1 USB player input and 128 IP inputs via the GE port, 2 GE iptv date transform port,and output by multiple DVB-C (or DVB-T/ATSC/ISDB-T optional) carrier channels. It also supports MPTS output as mirror of carriers through the GE port and 1 ASI out as mirror of one of the carriers. And support HLS/M3U8/RTPS/RTMP/SRT etc protocol output,This full function device makes it ideal for small CATV head end system, IPTV Live Tv system,and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
Key features
· 8/16/24 HDMI (or HDMI plus DVB-S2/S2X tuner) inputs, MPEG-4 AVC/H.264 Video encoding,satellite gateway function.
· 1 ASI input for re-mux,2 GE transform Port
· 1 USB Player (Insert the USB Flash drive with “xxx.ts” videos in NDS3536S and play back the content in an easy way; file system FAT 32)
· 128 IP input over UDP and RTP via GE port
· Each carrier out channel process maximum 32 IP from the GE port (UDP&RTP protocol)
· MPEG1 Layer II, LC-AAC and HE-AAC Audio encoding, AC3 Pass Through and audio gain adjustment
· Support DVB-C/DVB-T/ATSC/ISDB Modulator output
· Support 1 ASI out as mirror of one of RF output carriers---Optional
· Support MPTS IP output over UDP, RTP/RTSP
· Support HLS/M3U8/RTSP/RTMP/SRT/HTTP IP output
Support LOGO, Caption and QR code insertion (Language Supported: English for more languages please consult us…)
· Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
· Control via web management, and easy updates via web
• Others key
• Data ports for input/output Data ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
IP out over SRT, HTTP, HLS RTP/RTSP and RTMP (Unicast)
• Support IP anti-jitter function
• Control via web-based NMS management through DATA port
